Stability and anti-interference
Cross frame structure, more stable transmission
PVC(CM) Jacket
High durability, impact resistance, better insulation
UTP Cat6 cable (GC series)
overview
GAOXIAN Cat6 UTP cables exceed all ANSI/TIA and ISO/IEC requirements. Using GAOXIAN cables is the ideal way to ensure optimal channel performance.
Describe
Cable, Copper, Category 6, 4 Pair, Solid, UTP, 305 Meter, 23 AWG, Brown
Implementation standards
Standard ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.2-2009
Package
305m/box
Specifications
| Product type | Copper Cable (GC Series) |
| Performance level | Category 6 |
| Shield type | UTP |
| Nominal Jacket OD | |
| Conductor size (AWG) | 23AWG 0.52mm, pure copper |
| Implementation standards | Standard ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.2-2009 |
| Application support | 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af (Category 1 PoE), IEEE 802.3at (Category 2 PoE), IEEE 802.3bt (Category 3 PoE), IEEE 802.3bt (Category 4 PoE) |
| Jacket material | PVC plastic |
| Insulation | HDPE |
| DC resistance | <9.38Ω/100m |
| DC resistance imbalance | 5% |
| Mutual capacitance | 5nF/100m |
| Capacitance imbalance | <330pF/100m |
| Characteristic impedance (ohm) | 1~100MHz: 100 ± 15% 100~350MHz：100 ± 22% |
| NVP | 65% |
| Delay deviation | ≤40ns |
| Traction (maximum) | 110N |

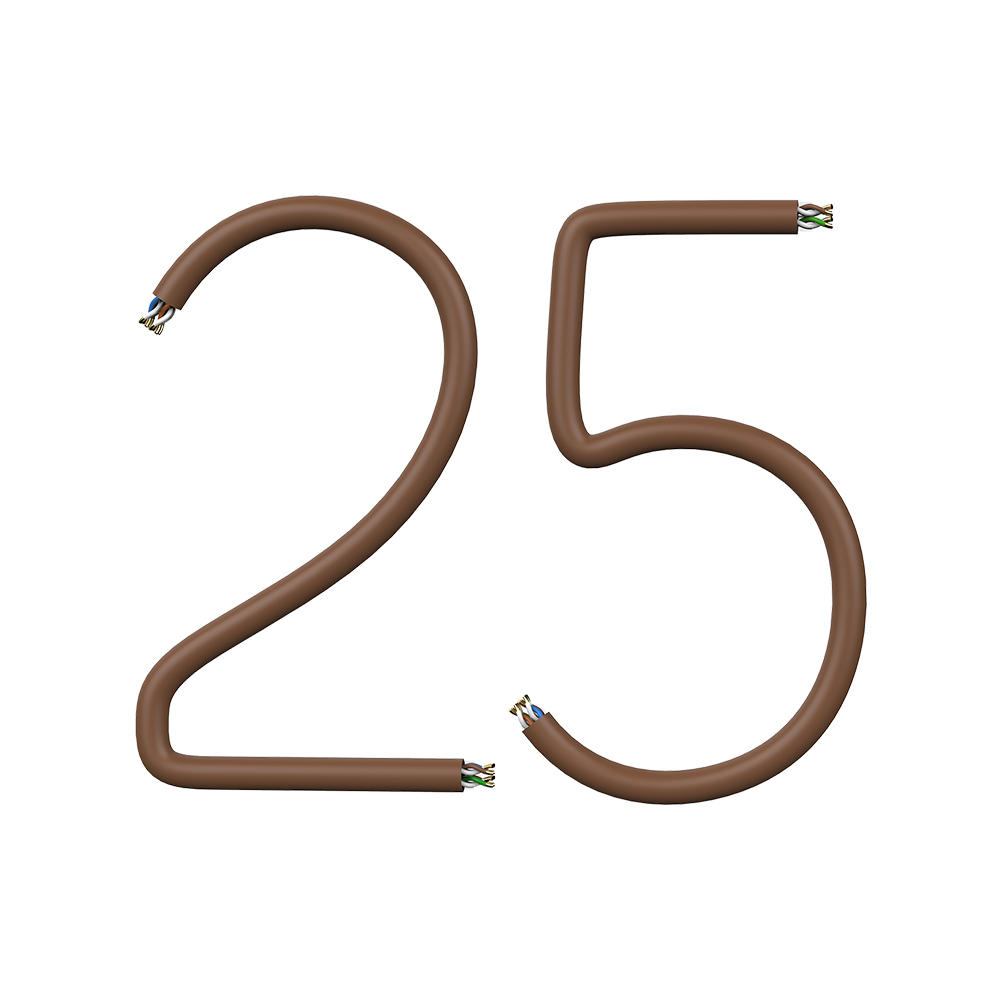

| Bend radius (minutes) | 25mm |
| Installation temperature (℃) | 0~60℃ |
| Storage temperature (℃) | -20~75℃ |
| Operating temperature (℃) | -20~60℃ |
| Fluke standards | Fluke 90 Meter Permanent Link Tester |
| Fire protection | UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008 |
| Color | Brown |
| Quality warranty | 15 year warranty |
Packaging details
Standard barrel meter. 305 minutes
fluke channel
