Cat5e UTP Cable(GC series)

overview

GAOXIAN Cat5e UTP cables exceed all ANSI/TIA and ISO/IEC requirements for Category 5e/Class D transmission performance. Using GAOXIAN cables is the ideal way to ensure optimal channel performance.

Describe

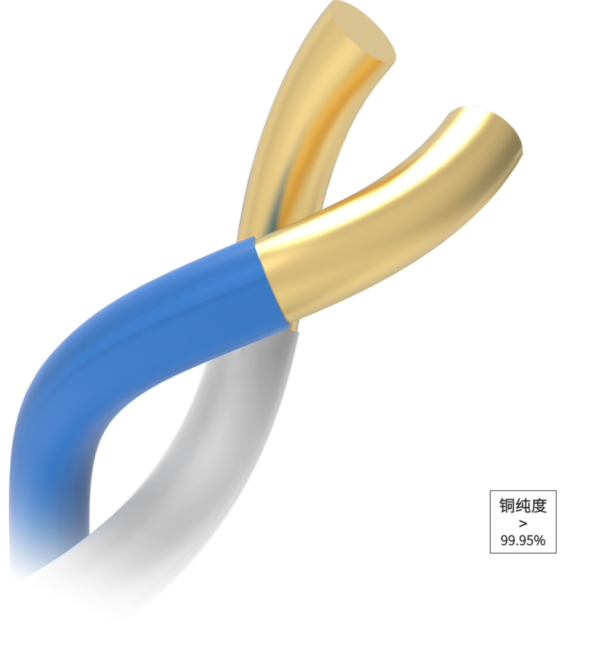

Cable, Copper, Category 5e, 4 Pair, Solid, UTP, 305 Meter, 24 AWG, Blue

Implementation standards

ANSI/TIA568C.2,ISO/IEC11801-1:2008,YD/T1019-2013,YD/T926.2-2009

Package

305m/box

Specifications

Product type	Copper Cable (GC Series)
Performance level	Category 5e
Shield type	UTP
Nominal Jacket OD
Conductor size (AWG)	24AWG 0.47mm, pure copper
Implementation standards	ANSI/TIA568C.2,ISO/IEC11801-1:2008,YD/T1019-2013,YD/T926.2-2009
Application support	1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af (Category 1 PoE), IEEE 802.3at (Category 2 PoE), IEEE 802.3bt (Category 3 PoE), IEEE 802.3bt (Category 4 PoE)
Jacket material	PVC plastic
Insulation	HDPE
DC resistance	<9.38Ω/100m
DC resistance imbalance	5%
Mutual capacitance	5nF/100m
Capacitance imbalance	<330pF/100m
Characteristic impedance (ohm)	1~100MHz: 100 ± 15% 100~350MHz：100 ± 22%
NVP	65%
Delay deviation	≤40ns
Traction (maximum)	110N
Bend radius (minutes)	25mm
Installation temperature (℃)	0~60℃
Storage temperature (℃)	-20~75℃
Operating temperature (℃)	-20~60℃
Fluke standards	Fluke 90 Meter Permanent Link Tester
Fire protection	UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008
Quality warranty	15 year warranty
