overview
GAOXIAN Cat6 UTP cables exceed all ANSI/TIA and ISO/IEC requirements. Using GAOXIAN cables is the ideal way to ensure optimal channel performance.
Describe

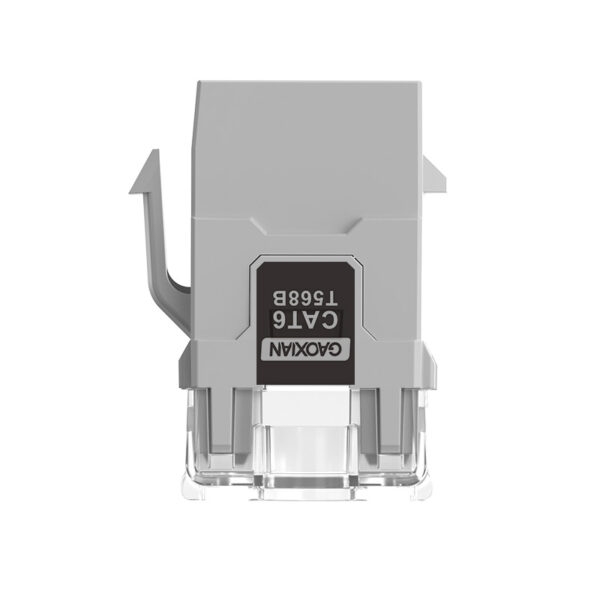

Modular jack, category 6, UTP, white, T568B
Implementation standards
ANSI/TIA568C.2,ISO/IEC11801-1:2008,YD/T1019-2013,YD/T926.2-2009
Quality warranty
15 year warranty
| Model number | GXCAT6-UM-GC |
| Product type | Modular Jack |
| Performance level | Category 6 |
| Shield type | UTP |
| Wire | T568B |
| Conductor size (AWG) | 22~26AWG |
| Implementation standards | ANSI/TIA568C.2,ISO/IEC11801-1:2008,YD/T1019-2013,YD/T926.2-2009 |
| Application support | 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af (Category 1 PoE), IEEE 802.3at (Category 2 PoE), IEEE 802.3bt (Category 3 PoE), IEEE 802.3bt (Category 4 PoE) |
| Minimum dielectric withstand voltage (contact to contact) | 1000V DC or AC peak |
| Compatibility | Back to Cat5e |
| Power over Ethernet | PoE(Type 1/2/3/4) & PoE+ |
| Operating temperature (℃) | -10~60℃ |
| Fire protection | UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008 |
| Green | RoHS |
| Number of plug and unplug cycles | Plug>1000, finish>250 |
| Minimum latch holding force | 50N |
| Plug compatibility | RJ45 |
| Fluke standards | Fluke Fixed Link Tester |
| Quality warranty | 15 year warranty |
| Standard quantity | 1 piece |

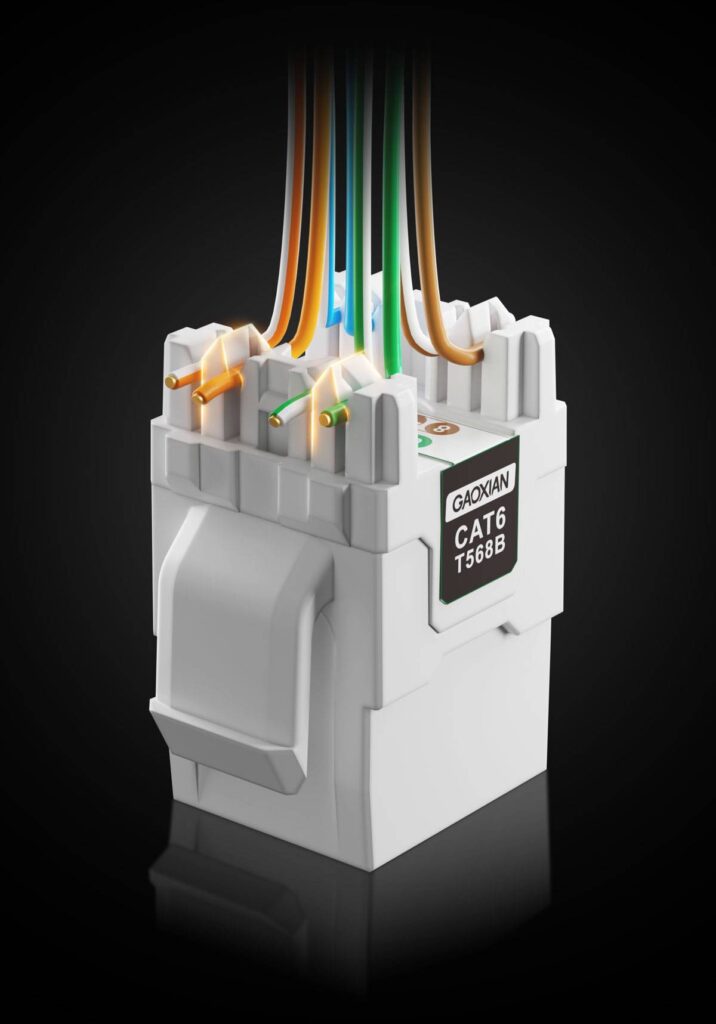

The upper part of the middle wire post of each wire pair is designed in a slope top structure,
No need to remove all twisted pair wires during installation,
Smooth card can be connected to the corresponding card slot by the slope top structure

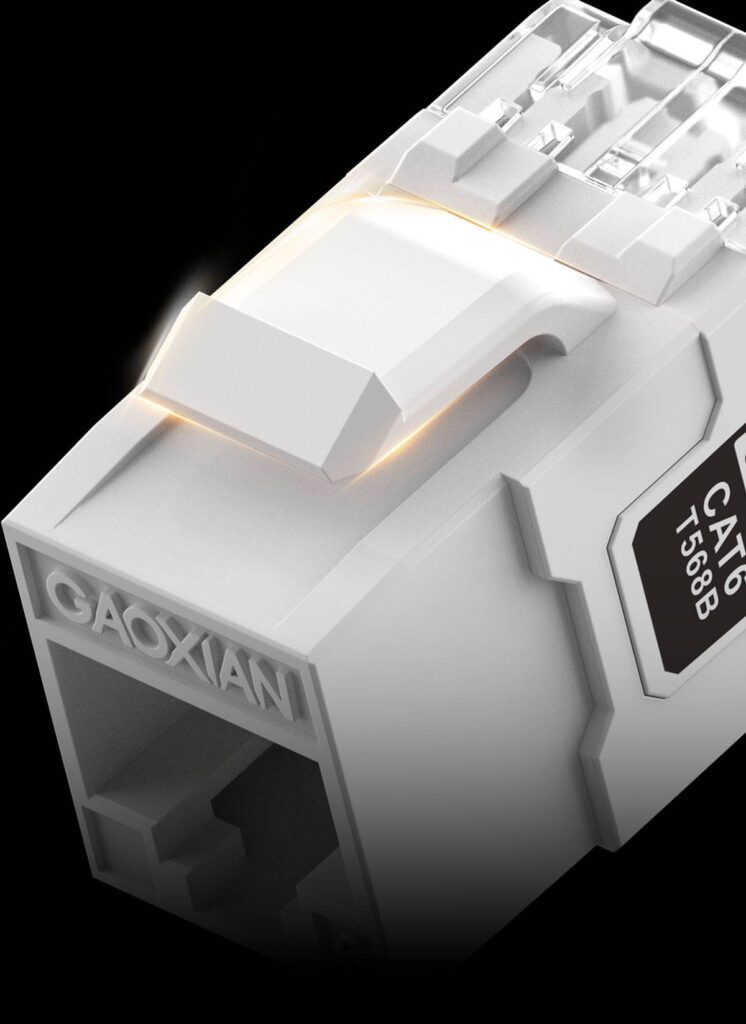

There are two types of locks: fixed locks and movable locks. Gaoxian engineering module uses movable locks, the lock is slightly raised,
Install the module after bearing a certain outward tension to ensure a firm installation.
