Colorful
Multiple color options: orange/red/purple/gray
Soft/Flexible
7*8 copper core structure, easy to bend.

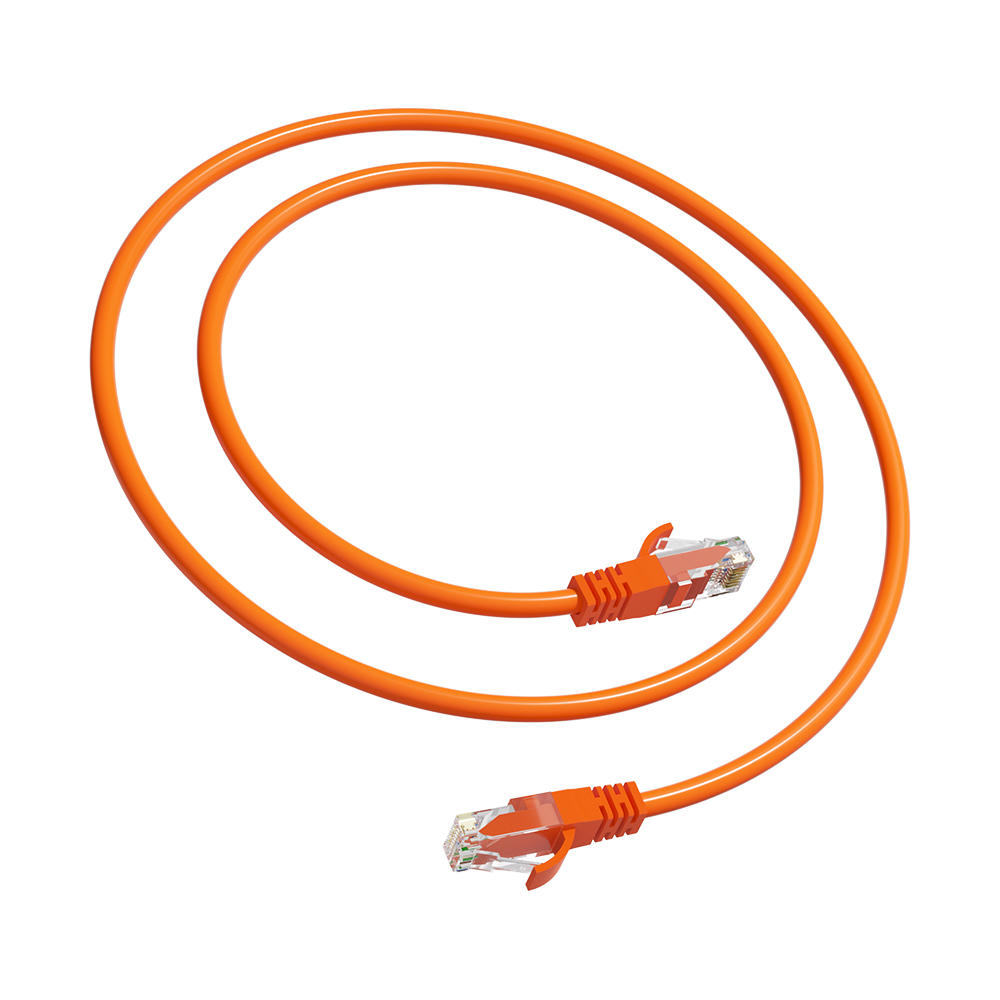

Cat6 UTP Patch Cord
overview
GAOXIAN Cat6 UTP exceeds all ANSI/TIA and ISO/IEC requirements. Using GAOXIAN cables is the ideal way to ensure optimal channel performance.
Describe
Patch Cord, Cable, Copper, Category 6, 4 Pair, Solid, UTP, 24 AWG, Orange/Gray/Red/Purple
Implementation standards
Standard ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009
Package
0.3m / 0.5m / 1m / 1.5m / 2m / 3m / 5m / 10m
Specifications
| Product type | Cables |
| Performance level | Category 6 |
| Shield type | UTP |
| Wire | T568B |
| Nominal Jacket OD | |
| Conductor size (AWG) | 24AWG 7*8, Standard Tin Bronze |
| Implementation standards | Standard ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009 |
| Application support | 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af (Category 1 PoE), IEEE 802.3at (Category 2 PoE), IEEE 802.3bt (Category 3 PoE), IEEE 802.3bt (Category 4 PoE) |
| Jacket material | PVC plastic |
| Insulation | HDPE |
| Minimum dielectric withstand voltage (contact to contact) | 1000V DC or AC peak |
| Electrical resistance material | 500mΩ |
| Compatibility | Back to Cat5e |
| Rated current (25℃) | 1.5A |
| Power over Ethernet | PoE and PoE+ |
| Surface transmission impedance | < 10mΩ/m(10MHz) |
| Operating temperature (℃) | -10~60℃ |
| Fire protection | UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008 |
| Plug material | Polycarbonate |
| Plug insertion cycle | 1000 |
| Minimum plug holding force | 50N |
| Plug compatibility | RJ45 |
| Bend radius | 50mm |
| Fluke standards | Check the Fluke patch cord |
| Color | Orange/Red/Purple/Gray |
Packaging details
| Standard barrel meter. | 0.3m / 0.5m / 1m / 1.5m / 2m / 3m / 5m / 10m |
| Standard quantity | 1 piece |
GXCAT6-UT-OR
