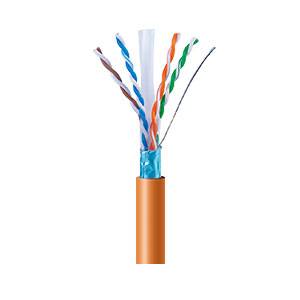

CAT6A F/UTP Cable

overview

GAOXIAN Cat6A FTP cables exceed all ANSI/TIA and ISO/IEC requirements. Using GAOXIAN cables is the ideal way to ensure optimal channel performance.

Describe

Cable, Copper, Category 6A, 4 Pair, Solid, FTP, 305 Meters, 23 AWG, Orange,

Implementation standards

ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 1019-2013，YD/T 926.2-2009

Package

305m/box

Specifications

Product Type	Copper Cable
Performance Level	Category 6A
Shield Type	F/UTP, Aluminum Foil Barrier
Nominal Jacket OD
Conductor Gauge (AWG)	23AWG 0.58mm, solid bare copper
Implementation Standards	ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 1019-2013，YD/T 926.2-2009
Applications support	10GBASE-T， 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af(Type1 PoE), IEEE 802.3at(Type2 PoE), IEEE 802.3bt(Type3 PoE), IEEE 802.3bt(Type4 PoE)
Jacket Material	PVC
Insulation Material	HDPE
DC Resistance	<9.38Ω/100m
DC Resistance Unbalance	5%
Mutual Capacitance	5nF/100m
Capacity Unbalance	<330pF/100m
Characteristic Impmedance(ohms)	1~100MHz: 100 ± 15% 100~350MHz：100 ± 22%
NVP	65%
Delay Skew	≤40ns
Pulling Tension(max)	110N
Bend Radius(min)	25mm
Installation Temperature(℃)	0~60℃
Storage Temperature(℃)	-20~75℃
Operating Temperature(℃)	-20~60℃
Fluke Standard	Fluke 90-meter Permanent Link test
Flame Resistance	UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008
Color	Orange
Quality Warranty	15 years warranty

Packaging details

Std. Ctn. meter.

305m
