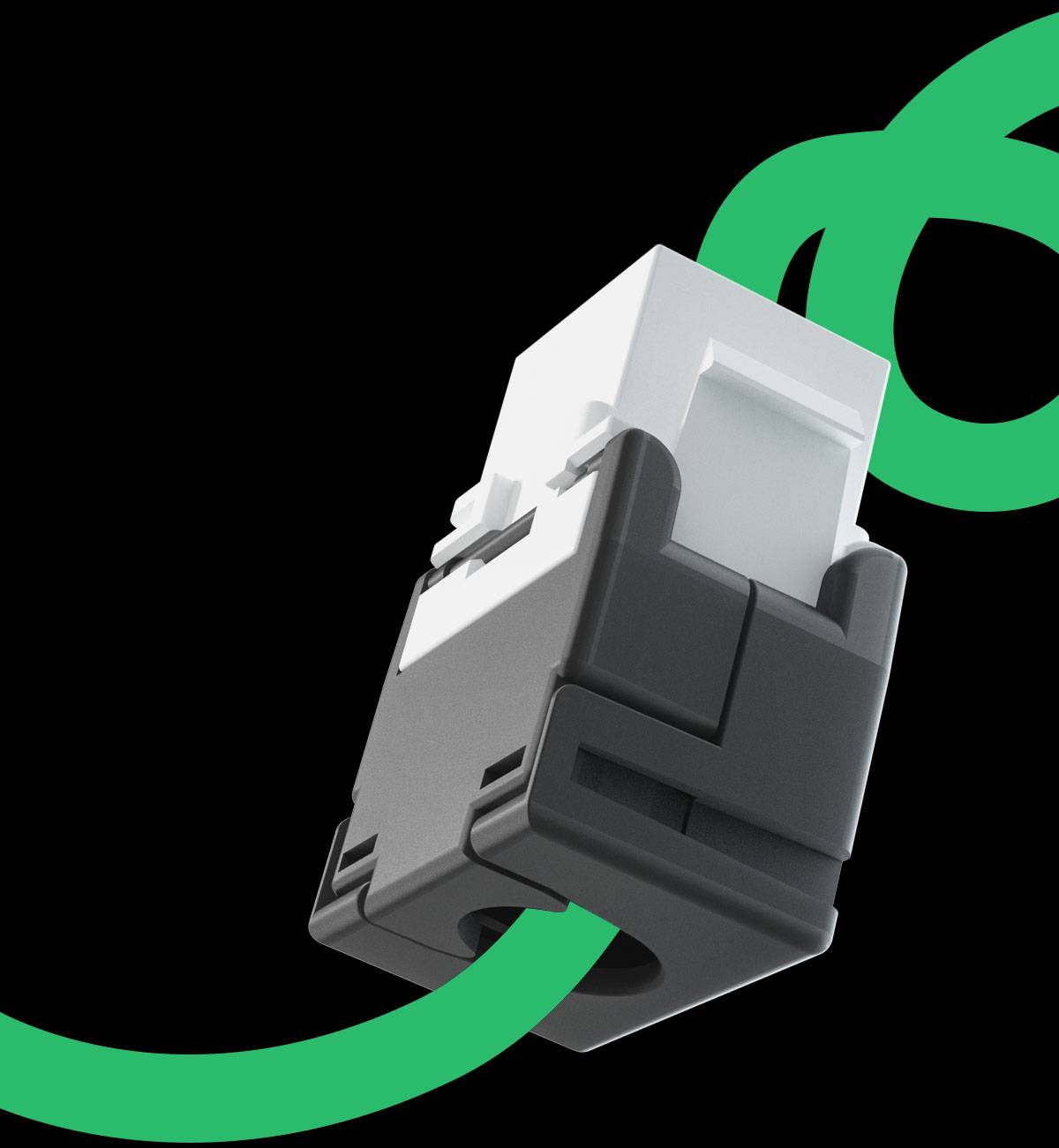

Cat5e UTP Keystone jack (no tools required)

overview

Jack for Cat5e system, no cover, no tools required.

Describe

Modular Jack, Cat5e, 22~26AWG, Phosphor Bronze, Polycarbonate

Implementation standards

ANSI/TIA568C.2,ISO/IEC11801-1:2008,YD/T1019-2013,YD/T926.2-2009

Quality warranty

15 year warranty

Specifications

Model number GXCAT5e-UM-MD
Product type Modular Jack (no tools required)
Performance level Category 5e
Shield type UTP
Wire T568B
Conductor size (AWG) 22~26AWG
Implementation standards ANSI/TIA568C.2,ISO/IEC11801-1:2008,YD/T1019-2013,YD/T926.2-2009
Application support 1000BASE-T, 100BASE-T, 10BASE-T, IEEE 802.3af (Category 1 PoE), IEEE 802.3at (Category 2 PoE), IEEE 802.3bt (Category 3 PoE), IEEE 802.3bt (Category 4 PoE)
Minimum dielectric withstand voltage (contact to contact)  1000V DC or AC peak
Compatibility Back to Cat5e
Power over Ethernet PoE(Type 1/2/3/4) & PoE+
Operating temperature (℃) -10~60℃
Fire protection UL1581, CM level, IEC 60332-1-2, GB/T 18380.12-2008
Green RoHS
Number of plug and unplug cycles Plug>1000, finish>250
Minimum latch holding force 50N
Plug compatibility RJ45
Fluke standards Fluke Fixed Link Tester

Packaging details

Standard quantity 1 piece
