Patch Panel has Cat6A protection
overview
Cat6A protective patch panel, made of polycarbonate/ABS/Nickel-plated structural steel/Nickel-zinc alloy.
Describe

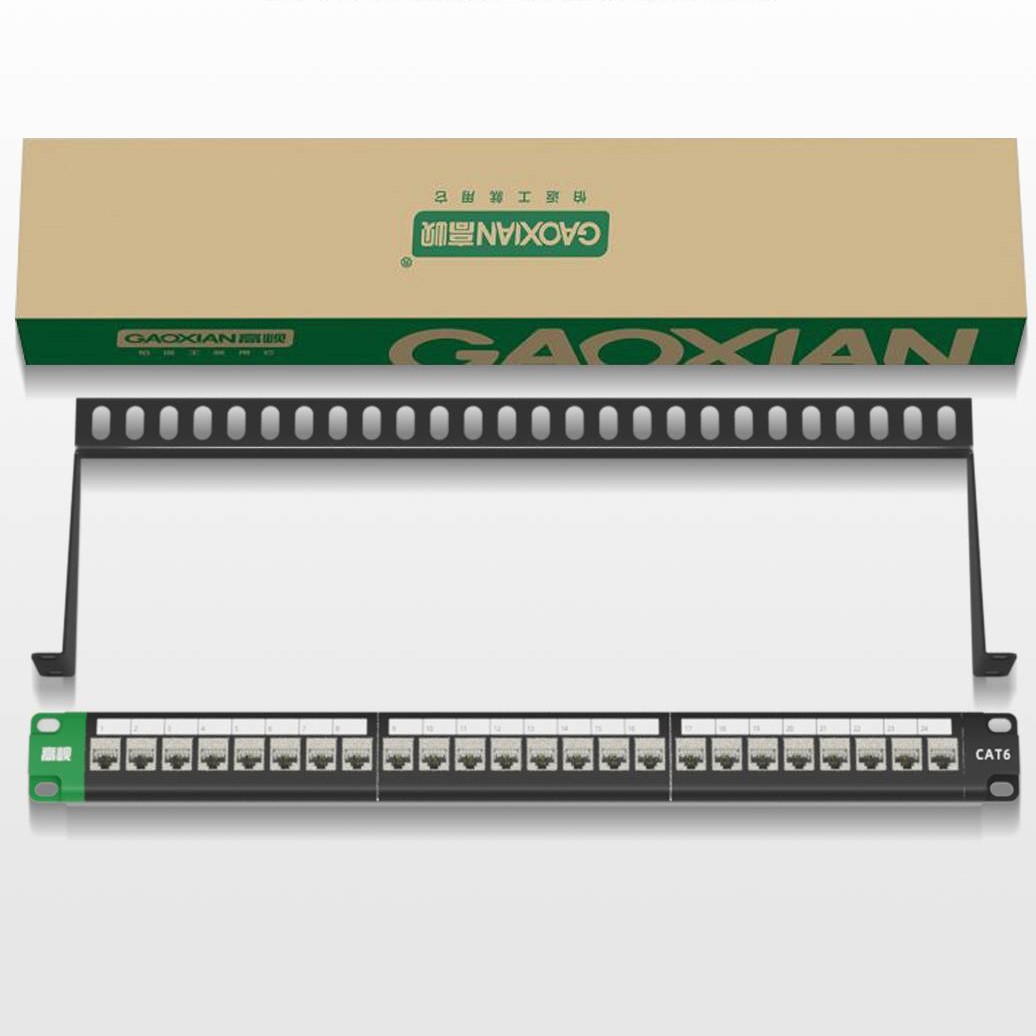

Patch Panel, Cat6A, Shielded, 1U, Fluke Pass
Implementation standards
Standard ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009
Quality warranty
15 year warranty
Specifications
| Model number | GXCAT6A-24FP |
| Product type | Patch Panel |
| Type | 6A |
| Shield type | Shield |
| Implementation standards | Standard ANSI/TIA 568.2-D，ISO/IEC 11801-1:2017，YD/T 926.3-2009 |
| AWG | 22~26AWG |
| Product size | Height: 1U, Length: 19U |
| Gate | 24 |
| Number of plug and unplug cycles | Plug>1000, finish>250 |
| Minimum dielectric withstand voltage (contact to contact) | 1000V DC or AC peak |
| Compatibility | Back to Cat5e |
| Power over Ethernet | PoE(Type 1/2/3/4) & PoE+ |
| Operating temperature (℃) | -20~60℃ |
| Fire protection | UL94 V2 |
| Green | RoHS |
| Fluke standards | Fluke Fixed Link |
| Quality warranty | 15 year warranty |
Packaging details
| Standard quantity | 1 piece |
