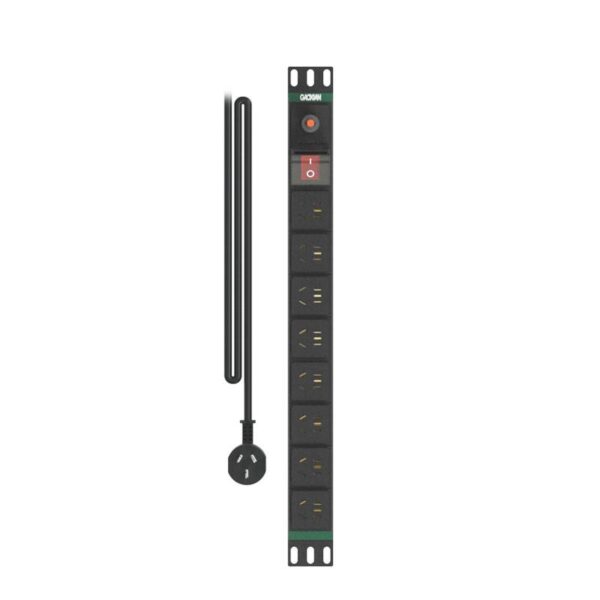

PDU(AO)

overview

PDU(AO) has 2 types: 1. 16Ain 10Aout ; 2. 10Ain 10Aout

Describe

PDU, AO, Overload Protection

Implementation standards

2063-2009

Quality warranty

5 year warranty

Specifications

Model number	GXPDU-21610A-GZ / GXPDU-210A-GZ
Product type	PDU, Overload Protection
Material	Copper core, UL 94V1 fireproof PC plastic, aluminum alloy shell
Feature	Single copper spot welding process, integrated safety shutter for sockets, with power switch, surge protection
Maximum current	16Ain 10Aout / 10Ain 10Aout
Socket Type	5 hole socks *8
Compliance standards	2063-2009
Cable length	1.8m
Maximum capacity	4000W / 2500W
Power plug	16A/10A
Copper wire diameter	1.5mm ² / 1.0mm ²
Product size	Height: 1U, Length: 19 inches
Quality Assurance	5 year warranty

Packaging details

Standard quantity

10 pcs/box

Bronze Craft

Industrial PDU has built-in copper bar, using integrated casting process. The conductors are made of the same copper material, with low resistance and low loss. The maximum output power is 2500W, the maximum output current is 10A, and the rated output voltage is 250V.

360° Rotate Bracket

The steel bracket embedded in the side covers forms a 360° rotation mechanism. After the PDU is installed in the bracket, the bracket can rotate 360° in different directions according to the power requirements of the terminal. This adaptability to various usage needs brings convenience to the installation process and improves efficiency.
